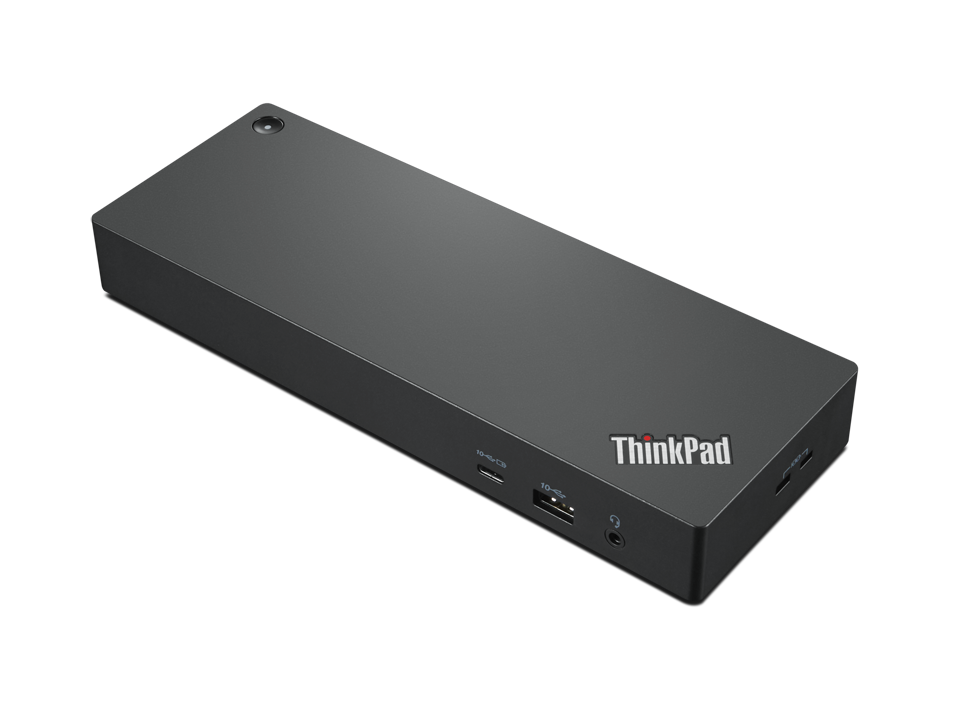

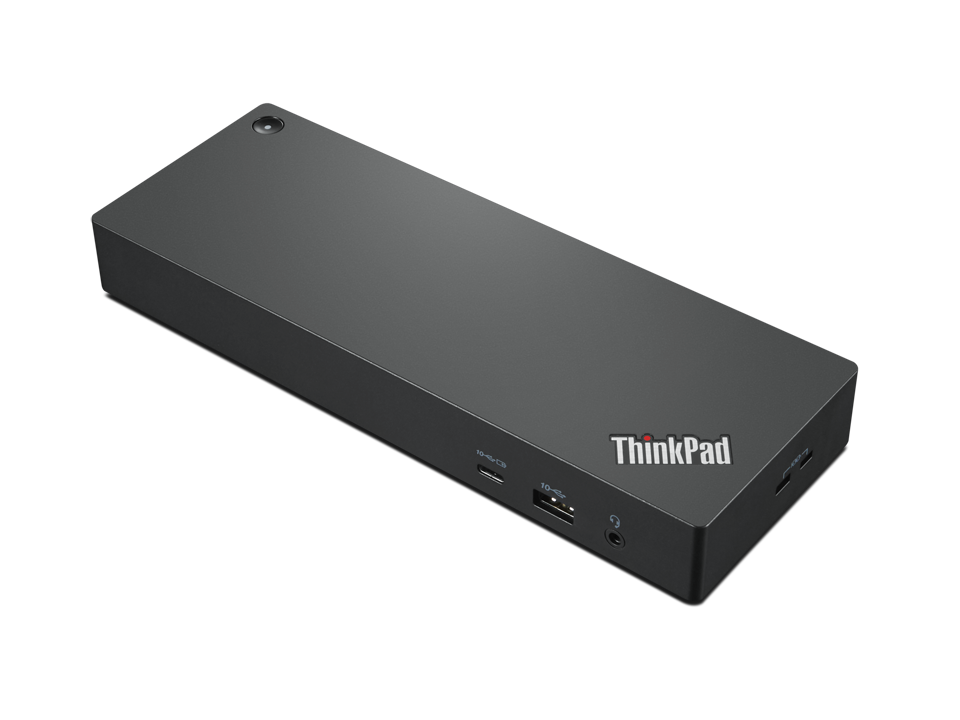

ThinkPad Thunderbolt 4 Workstation Dock Lenovo TR Garantilidir 40B00300EU
467,00 USD + KDV
Taksit :
2.151,38 TL ' den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
40B00300EU
Teslimat Süresi
2-3 Gün
Garanti Süresi
12 Ay
Fiyat
467,00 USD + KDV
| Minimum Relative Humidity (%) | 5% |
| Maximum Relative Humidity (%) | 95% |
| JAN | 4580551376206 |
| EAN | 195348677387 |
| UPC | 195348677387 |
| Warranty Type | CRU |
| Warranty Period | 3 years |
| Maximum Operating Temperature | 40 celsius |
| Minimum Operating Temperature | 0 celsius |
| Packed Weight | 1.9Kg |
| Packed Dimensions (L x D x H) | 270*195*85mm |
| Package Type | brown box |
| Shipment Group | ThinkPad Universal TBT 4 Dock 300W AC Power adapter Power cord Setup poster&Warranty Poster Standard TBT 4 Cable |
| Included Accessory | 300W adapter, 1x power cord, standard Thunderbolt cable |
| Product Weight | 0.45Kg |
| Height | 30mm |
| Depth | 80mm |
| Length | 220mm |
| Driver Needed | Yes |
| Hardware Requirements | Host with USB-C/Thunderbolt port |
| Supported OS | Win10 64 bit |
| Agency Approvals | cULus, FCC,ICES,NOM |
| Color | Black/Red |
| Power Plug | Slim Tip |
| Power Button | Yes |
| Output Power | Max 230W |
| Power Delivery | Yes |
| Input Power | 20V 15A |
| Charging Port | DC-IN |
| Maximum Resolution/Refresh Rate | 1* 8K 30Hz Via HDMI 2.1 4*4K 60 Hz |
| Max Number of External Monitors | 4 |
| Physical Security Feature | 1* NanoSaver lock slot 1*MicroSaver lock slot |
| Ethernet | 1* Gigabit Ethernet |
| Audio Ports | 1* 3.5mm Audio combo Jack |
| USB Ports | 4* USB-A 1* USB-C |
| Video Ports | 1* HDMI 2.1 2* DP 1.4 |
| Thunderbolt Port | 1* Thunderbolt Port - for Host connect 1* Thunderbolt Port - for Device connect |
| Brand | ThinkPad |
Compatibility
Operating System
OS Independent
Compatible Machines
| Description | ID | Footnote |
| L13 Clam 2nd Generation-20VH MT 2020 | 20VH | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L13 Clam 2nd Generation-20VJ MT 2020 | 20VJ | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L13 Clam-20R3 MT | 20R3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Clam-20R4 MT | 20R4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Yoga 2nd Generation-20VK MT 2020 | 20VK | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L13 Yoga 2nd Generation-20VL MT 2020 | 20VL | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L13 Yoga-20R5 MT | 20R5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Yoga-20R6 MT | 20R6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L14 G2-20X1 - L14 Gen 2 | 20X1 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L14 G2-20X2 - L14 Gen 2 | 20X2 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L15 G2-20X3 - L15 Gen 2 | 20X3 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L15 G2-20X4 - L15 Gen 2 | 20X4 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| P1 G4-20Y3 - P1 Gen 4 | 20Y3 | dGPU model 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 |
| P1 G4-20Y4 - P1 Gen 4 | 20Y4 | dGPU model 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 |
| P14s 2nd Generation-20VX MT 2021 | 20VX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s 2nd Generation-20VY MT 2021 | 20VY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15 G2-20YQ - P15 Gen 2 | 20YQ | 1. 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 2. WOL not work once set MAC address pass through enable with Vpro system when use Dock PCIE Lan. Fix target in Nov.2021. |
| P15 G2-20YR - P15 Gen 2 | 20YR | 1. 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 2. WOL not work once set MAC address pass through enable with Vpro system when use Dock PCIE Lan. Fix target in Nov.2021. |
| P15s 2nd Generation-20W6 - P15s Gen 2 | 20W6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 2nd Generation-20W7 - P15s Gen 2 | 20W7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15v G2-21A9 - P15v Gen 2 | 21A9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15v G2-21AA - P15v Gen 2 | 21AA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P17 G2-20YU - P17 Gen 2 | 20YU | 1. 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 2. WOL not work once set MAC address pass through enable with Vpro system when use Dock PCIE Lan. Fix target in Nov.2021. |
| P17 G2-20YV - P17 Gen 2 | 20YV | 1. 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 2. WOL not work once set MAC address pass through enable with Vpro system when use Dock PCIE Lan. Fix target in Nov.2021. |
| T14 2nd Generation-20W0 MT 2021 | 20W0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W1 MT 2021 | 20W1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W2 MT 2021 HC | 20W2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W3 MT 2021 HC | 20W3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s 2nd Generation-20WM - T14s Gen 2 | 20WM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s 2nd Generation-20WN - T14s Gen 2 | 20WN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15 2nd Generation-20W4 - T15 Gen 2 | 20W4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15 2nd Generation-20W5 - T15 Gen 2 | 20W5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15p G2-21A7 - T15p Gen 2 | 21A7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15p G2-21A8 - T15p Gen 2 | 21A8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P1 3rd Generation-20TH MT 2020 | 20TH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P1 3rd Generation-20TJ MT 2020 | 20TJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P15-20ST MT 2020 | 20ST | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 |
| ThinkPad P15-20SU MT 2020 | 20SU | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 |
| ThinkPad P15v-20TQ MT 2020 | 20TQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P15v-20TR MT 2020 | 20TR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P17-20SN MT 2020 | 20SN | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 |
| ThinkPad P17-20SQ MT 2020 | 20SQ | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 |
| ThinkPad T15p-20TM MT 2020 | 20TM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T15p-20TN MT 2020 | 20TN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 9th Generation-20XW - X1 Carbon Gen 9 | 20XW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 9th Generation-20XX - X1 Carbon Gen 9 | 20XX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Extreme 3rd Generation-20TK MT 2020 | 20TK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Extreme 3rd Generation-20TL MT 2020 | 20TL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Extreme G4-20Y5 - X1 Extreme Gen 4 | 20Y5 | dGPU model 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 |
| X1 Extreme G4-20Y6 - X1 Extreme Gen 4 | 20Y6 | dGPU model 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 |
| X1 Nano-20UN MT 2020 | 20UN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano-20UQ MT 2020 | 20UQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Titanium G1-20QA MT 2020 | 20QA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Titanium G1-20QB MT 2020 | 20QB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 6th Generation-20XY - X1 Yoga Gen 6 | 20XY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 6th Generation-20Y0 - X1 Yoga Gen 6 | 20Y0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X12 Detachable 1st Generation-20UV MT 2020 | 20UV | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| X12 Detachable 1st Generation-20UW MT 2020 | 20UW | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| X13 G2-20WK - X13 Gen 2 | 20WK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G2-20WL - X13 Gen 2 | 20WL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga 2nd Generation-20W8 MT 2021 | 20W8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga 2nd Generation-20W9 MT 2021 | 20W9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
